Bosch fridge can power up like everything is fine and still miss the job it was built for: keeping food cold.
Bosch fridge can show a normal display, run its fan, and still leave both compartments warmer than they should be after the unit has had time to run. So the diagnosis has to be precise.
Having Warm Bosch doesn’t indicate a dead compressor. It can be:
- a failed inverter board,
- a control issue,
- a bad start signal,
- a refrigerant restriction,
- a sealed-system leak,
- or a compressor that is running but no longer pumping well.
From the kitchen, those problems can look nearly identical. On the invoice, they are very different.
Appliance Repair Master handles Bosch no-cool and bosch compressor failure calls across Atlanta, including Bosch 800/500 Series refrigerators, inverter-driven models, built-in units, counter-depth models, and B26FT70SNS compressor failure diagnostics. We check the cooling command, inverter board compatibility, compressor behavior, sealed-system performance, and temperature recovery before recommending parts.
That is especially important when someone has already mentioned compressor replacement cost $1500. A four-figure repair should never start with probably. It should start with proof.
If your Bosch refrigerator is warm in both sections, the fan still runs, or you are dealing with a compressor not running complaint after resets, call Appliance Repair Master for Bosch refrigerator diagnosis in Atlanta.

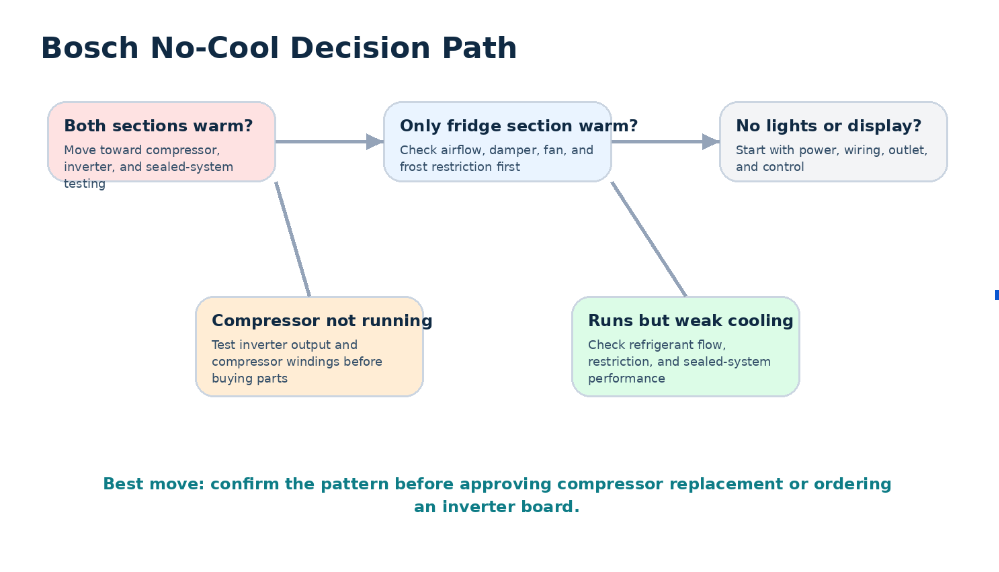

What We Check First
The compressor gets blamed fast when a Bosch fridge runs warm. Sometimes that is fair.ย
Before we talk about sealed system repair or a $1,500 compressor quote, we look at the cooling pattern. Is the freezer still close to range while the refrigerator section runs warm? Or are both compartments losing temperature together?
That split shows us where to start.
What you notice | What it points toward | Why it changes the repair |
|---|---|---|
Freezer is still cold, but the refrigerator section runs warm | Airflow, evaporator fan, damper, blocked vents, frost buildup | Cold air may exist, but it is not reaching the fresh-food section properly |
Freezer and refrigerator are both warm | Compressor problem, inverter/start issue, sealed-system fault | The unit may not be producing enough cooling at all |
Lights and display are off | Outlet, power supply, wiring, main control | This starts as a power issue, not a compressor issue |
Refrigerator runs for hours with weak cooling | Low refrigerant, weak compressor, restriction | The system may be working hard without moving heat out effectively |
As you see, your money is wasted.
A fan sound doesnโt indicate the compressor is healthy. A warm cabinet doesnโt prove the compressor is dead. On Bosch 800/500 Series refrigerators, especially inverter-driven models, the compressor, inverter board, controls, and sealed system need to be checked in the right order.
Inverter board compatibility is a big part of that. A wrong inverter can leave a good compressor silent. A bad compressor can make a good inverter look guilty. If the complaint is compressor not running, both parts need testing before anything gets ordered.
Quick homeowner check before approving major parts
โ Both compartments are warming.
โ The display and lights still work.
โ A fan runs, but cooling never comes back.
โ The refrigerator runs for long stretches with no real temperature drop.
โ The compressor area clicks, hums, overheats, or stays silent.
โ A reset changes nothing.
โ Food is already moving into unsafe temperatures.
Appliance Repair Master can check the compressor circuit, inverter output, sealed-system behavior, and temperature recovery before you pay for the wrong repair.

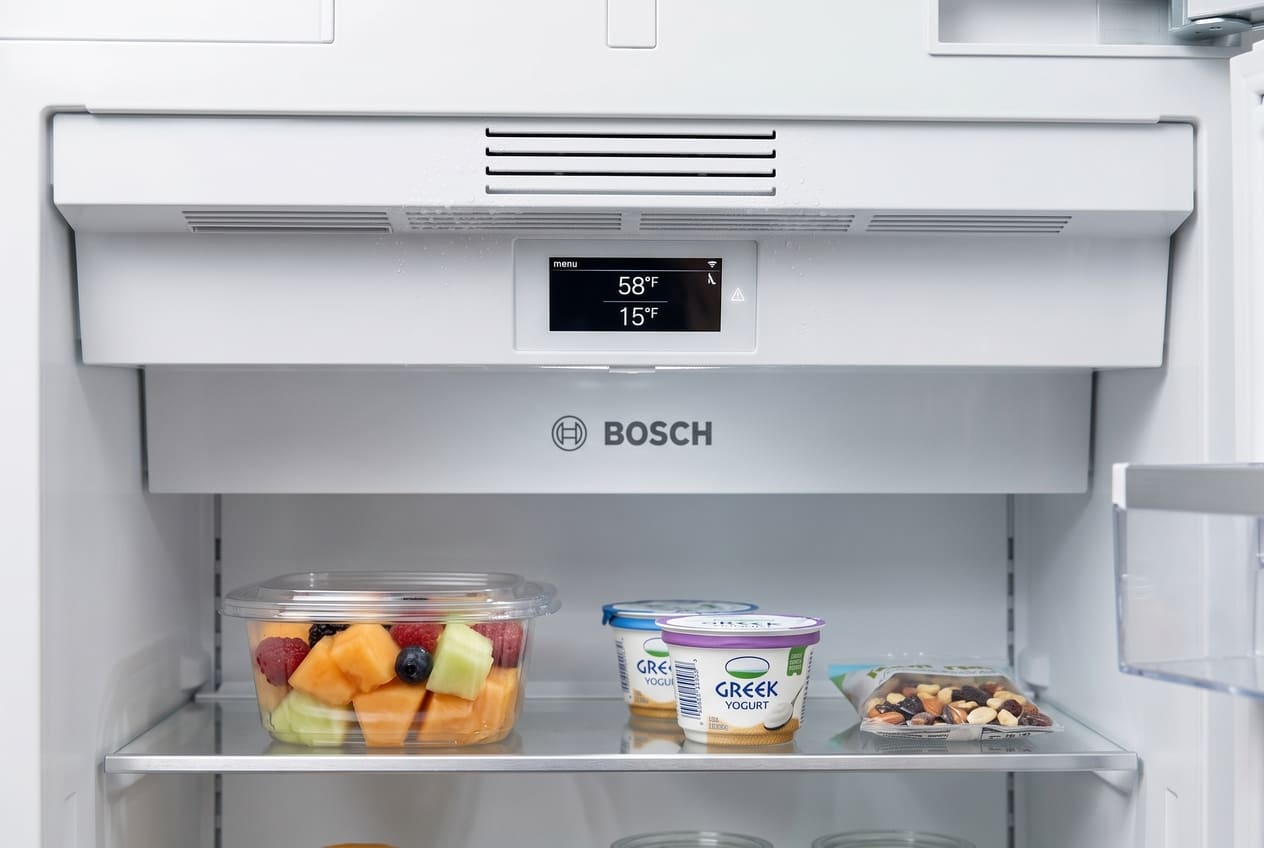

Fan Noise
Bosch with a running fan and a lit display can still have a serious cooling problem. Those signs only show you the refrigerator has power and some components are active. They donโt explain whether the compressor is starting, whether the inverter board is driving it correctly, or whether refrigerant is moving through the sealed system.
That is the part homeowners often miss, and it is why Bosch compressor failure gets misread so easily.
From the kitchen, a fan problem, inverter issue, weak compressor, and sealed-system restriction can all look oddly similar: the refrigerator runs, the cabinet stays warm, and every reset buys either nothing or a very short break. From a service standpoint, those are completely different repairs.
Appliance Repair Master checks the cooling command, inverter output, compressor behavior, frost pattern, and temperature recovery before recommending sealed-system repair. That keeps a warm Bosch from turning into a parts-shopping spree.
What you notice | What it can mean |
|---|---|
Fans run, but both sections stay warm | Compressor, inverter, or sealed-system fault |
Compressor clicks or hums, then stops | Start failure, overload, inverter issue, or locked compressor |
Compressor gets very hot while cooling stays weak | Compressor may be struggling under load |
Compressor stays quiet while fans run | Compressor not running, inverter issue, control issue, or wiring fault |
Refrigerator runs for hours with poor cooling | Weak compressor, low refrigerant, restriction, or sealed-system problem |
If both compartments stay warm after the refrigerator has had time to run, the compressor circuit needs proper testing. The repair could be an inverter board. It could be wiring or control. It could be sealed-system repair. It could be the compressor itself.
The expensive mistake is choosing one before testing the others.
Warm Cabinet, Soft Freezer, Long Runtime
Bosch compressor trouble usually shows up as a pattern.
The refrigerator runs longer than it used to. The freezer stops keeping food firm. The fresh-food section climbs above 40ยฐF. A reset helps for a little while, then the same problem comes back. Near the back of the unit, the compressor area may click, hum, run hot, or stay quiet when it should be working.
Atlanta kitchens can blur the picture. Summer heat, tight cabinetry, heavy grocery loads, and frequent door openings all make a refrigerator work harder. That part is normal. What isnโt normal is a Bosch that keeps running and still canโt pull both sections back into range.
Symptom | Why it deserves attention |
|---|---|
Both sections warm up | The issue is bigger than a fridge-only airflow problem |
Fans run, but cooling does not return | Compressor, inverter, or sealed system needs testing |
Freezer food softens | The unit is not holding its coldest zone |
Clicking or humming near the compressor | The compressor may be trying and failing to start |
Compressor area gets very hot | Load, start failure, or mechanical trouble may be involved |
Reset changes nothing | The issue is deeper than the control panel |
Bosch that warms after a big grocery load deserves a little time. Bosch that stays warm after hours of running requires a technician.

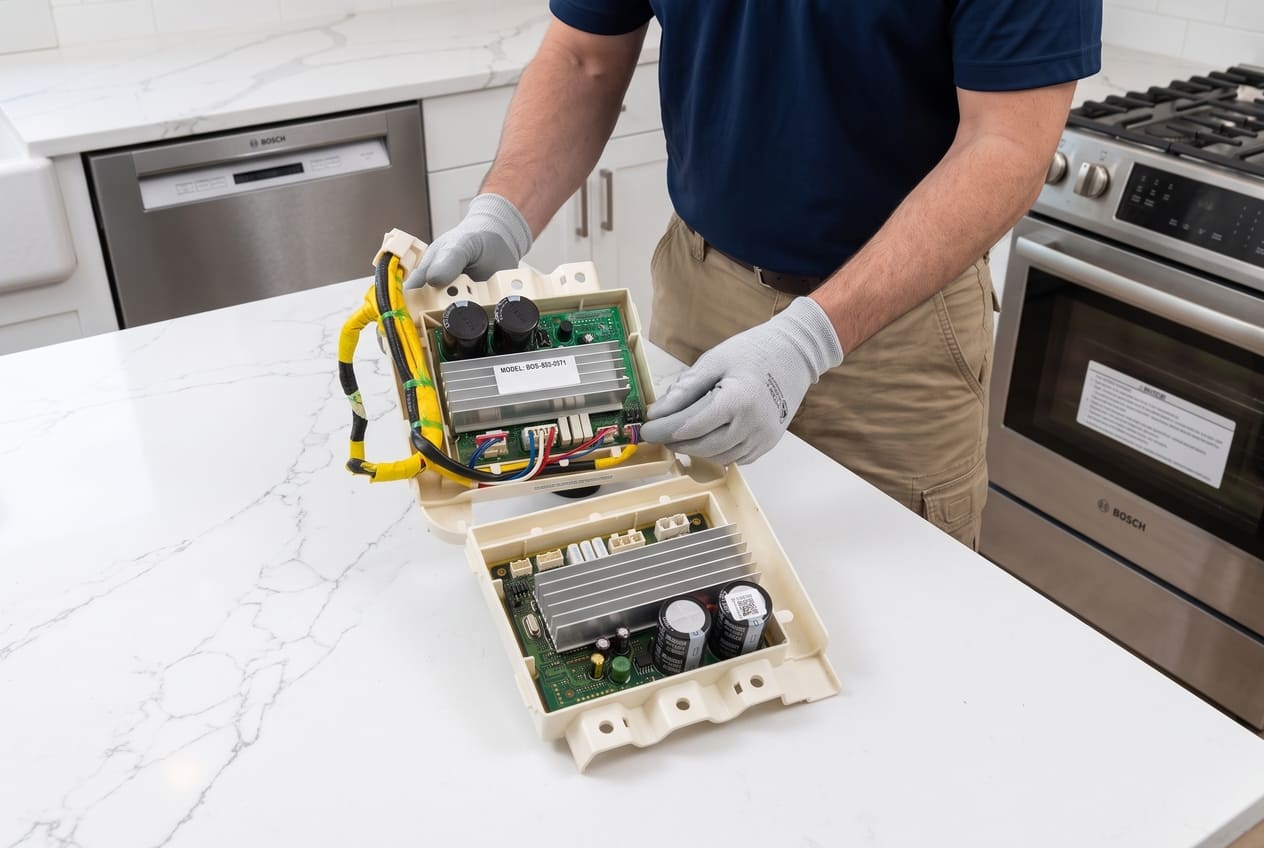

Compressor or Inverter Board
On many Bosch refrigerators, the compressor doesnโt run through a simple old-style start relay. The control board sends power and direction through an inverter board, and that inverter controls how the compressor starts and runs.
That setup is efficient. It is also one reason Bosch no-cool calls get misdiagnosed.
A failed inverter board can leave a good compressor sitting silent. A locked compressor can make a good inverter look guilty. A wiring or control issue can keep both from doing useful work. If the refrigerator is warm and the compressor not running complaint keeps coming back, the compressor and inverter need to be tested together.
Guessing which one failed first is how a repair bill grows.
What we compare | What it shows us |
|---|---|
Input voltage to the inverter | Whether power is reaching the compressor-control side |
Inverter output attempt | Whether the board is trying to start the compressor |
Compressor winding balance | Whether the compressor has an electrical failure |
Ground fault check | Whether the compressor is shorted |
Current behavior | Whether the compressor is locked or the inverter output is weak |
Full model and FD number | Whether the replacement part is actually compatible |
Inverter board compatibility is especially important on Bosch refrigerators. A board can plug in and still be wrong for the compressor, production revision, or control setup. Bosch model families can have different electronics across production runs, so the connector fits aren’t enough.
Appliance Repair Master checks the full data label before ordering parts. Model number, FD number, compressor type, harness layout, approved substitution โ all of it counts.
If the inverter is bad, replacing the compressor will not help. If the compressor is seized, replacing the inverter will not save it. A clean test keeps one failed part from turning into two purchased parts.

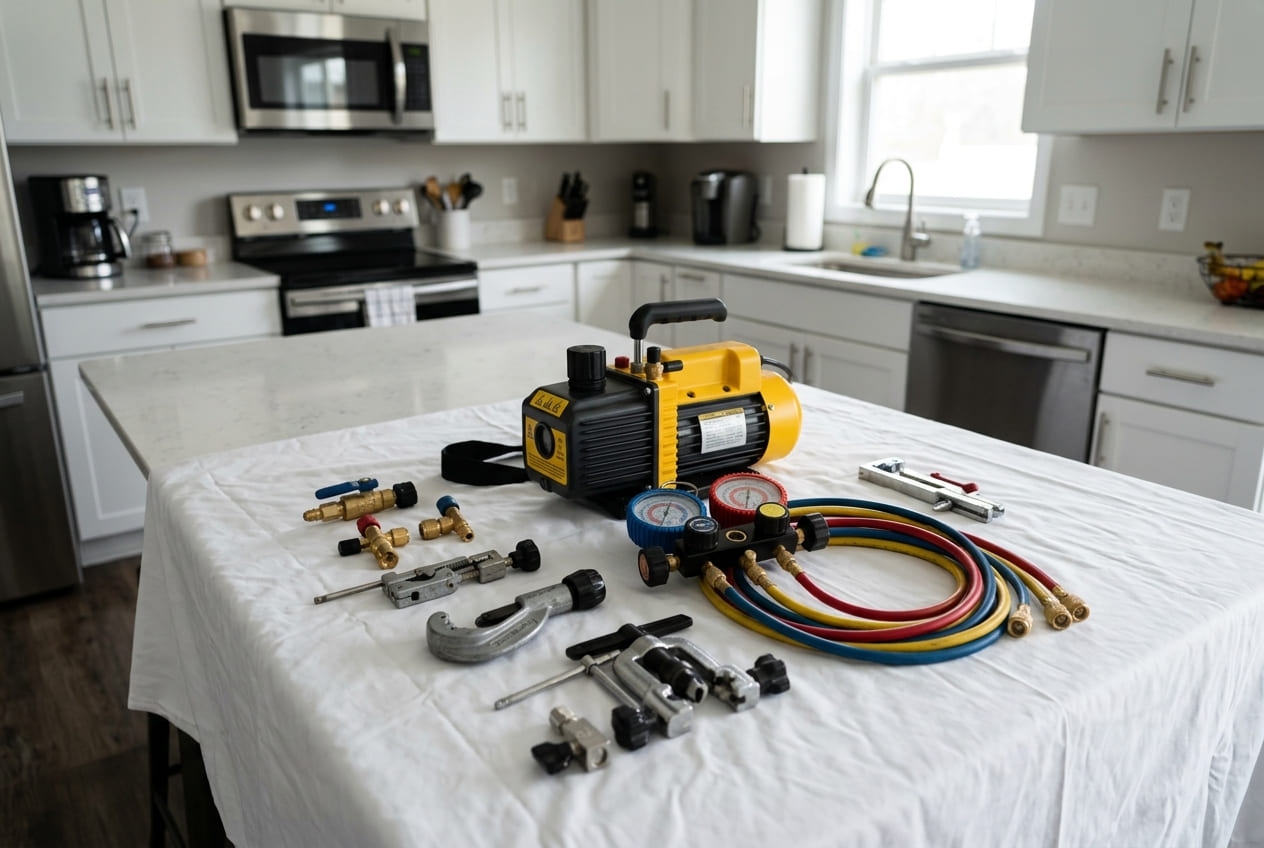

Sealed System Repair Is a Different Level of Work
Once the compressor itself is confirmed bad, the job moves into sealed-system territory.
That means the refrigeration circuit has to be opened. The failed compressor comes out. The correct replacement goes in. The filter drier is usually replaced. Lines are brazed. The system gets checked for leaks, pulled into vacuum, and charged by exact weight.
This is not the same repair category as a fan motor, gasket, or shelf part.
A proper sealed system repair needs the right tools, the right refrigerant process, and a diagnosis that justifies opening the system in the first place. If the old compressor failed because of a restriction, contamination, or refrigerant leak, swapping the compressor alone may leave the original problem in place.
What a proper sealed-system repair includes
โ Confirming the compressor is truly the failed part.
โ Checking for leaks, restrictions, or contamination.
โ Removing the failed compressor.
โ Installing the correct replacement compressor.
โ Replacing the filter drier when needed.
โ Brazing connections correctly.
โ Pressure-testing the system.
โ Pulling a proper vacuum.
โ Charging refrigerant by factory weight.
โ Verifying amp draw, heat transfer, and temperature recovery.
Small refrigerant charges leave very little room for sloppy work. A few grams off can change performance. A poor vacuum can shorten the life of the new compressor. A missed restriction can make a fresh repair fail early.
Appliance Repair Master doesnโt open the sealed system until the diagnosis supports it. We check the electrical side, inverter behavior, compressor response, and cooling performance first.
If another quote indicates probably the compressor, ask what was tested. A four-figure repair deserves more than a hunch.

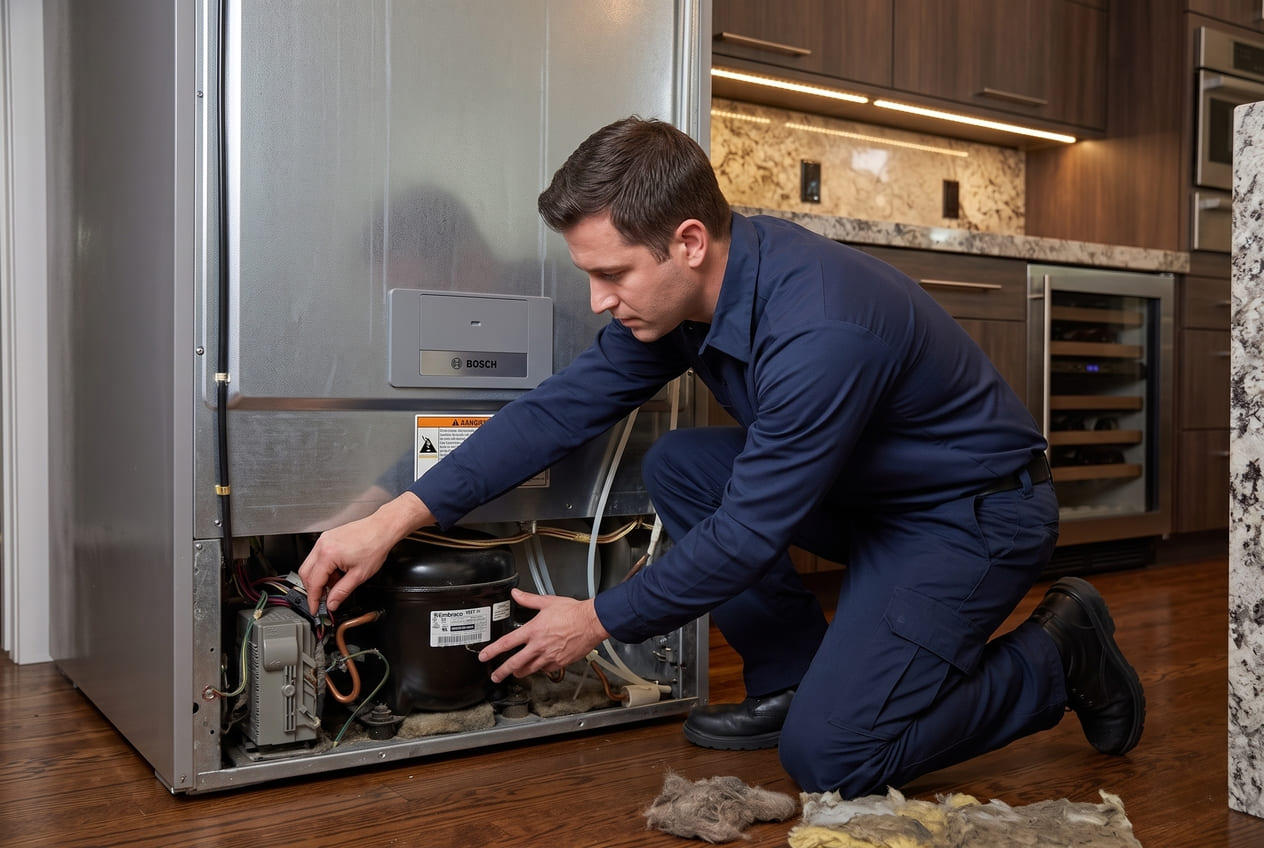

Bosch B26FT70SNS Compressor Failure
The Bosch B26FT70SNS shows up often in compressor conversations because the symptoms can point in more than one direction.
Owners usually describe a familiar no-cool pattern: the refrigerator powers on, fans run, the cabinet warms, and the compressor is either silent, hot, or trying to start without success. Some of these calls are true B26FT70SNS compressor failure cases. Some trace back to the inverter board. Others involve leaks or restrictions that get mislabeled as compressor trouble.
The full product tag matters as well as FD number and the refrigerant type. The installed compressor and inverter pairing also matter. A part that looks close can still be wrong.
Owner question | What we verify |
|---|---|
Can I match the compressor by appearance? | No. We match by model, FD, refrigerant, electrical specs, and approved substitution |
Do I need the inverter too? | Only if testing points there |
Can I use a similar compressor? | Not without approved compatibility |
Why did the new part not start? | Wrong revision, failed inverter, wiring issue, locked compressor, or sealed-system fault |
This is the kind of repair where speed can get expensive. Buying a compressor or inverter from a parts listing before testing the unit can leave you with a warm refrigerator and a very expensive box on the counter.
Appliance Repair Master checks the compressor-and-inverter combination on site. If the compressor is bad, we explain the sealed-system repair. If the inverter is the problem, we tell you before you pay for compressor work. If the refrigerator isnโt worth the investment, you hear that too.

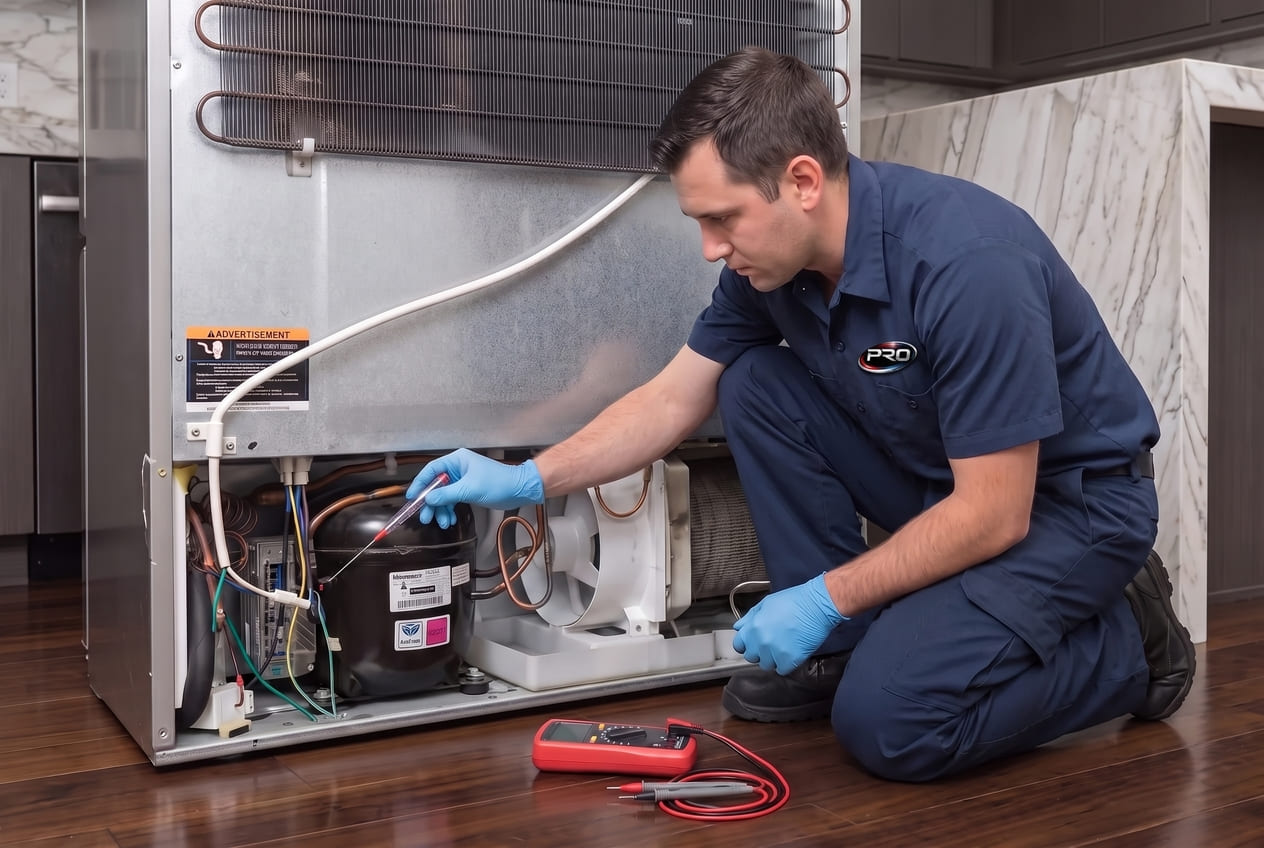

How We Diagnose Bosch Compressor Failure
A good Bosch compressor diagnosis follows a sequence. Skip the sequence and the repair can go sideways fast.
We start with three questions:
- Is the refrigerator calling for cooling?
- Is the compressor circuit getting the electrical input it needs?
- If the electrical side checks out, is the sealed system moving refrigerant and transferring heat?
That order keeps the repair honest.
If the board is not calling for cooling, the compressor may never get a chance to start. If the inverter receives power but sends no useful output, the compressor may be innocent. If the compressor starts but cooling stays weak, the sealed system moves higher on the list.

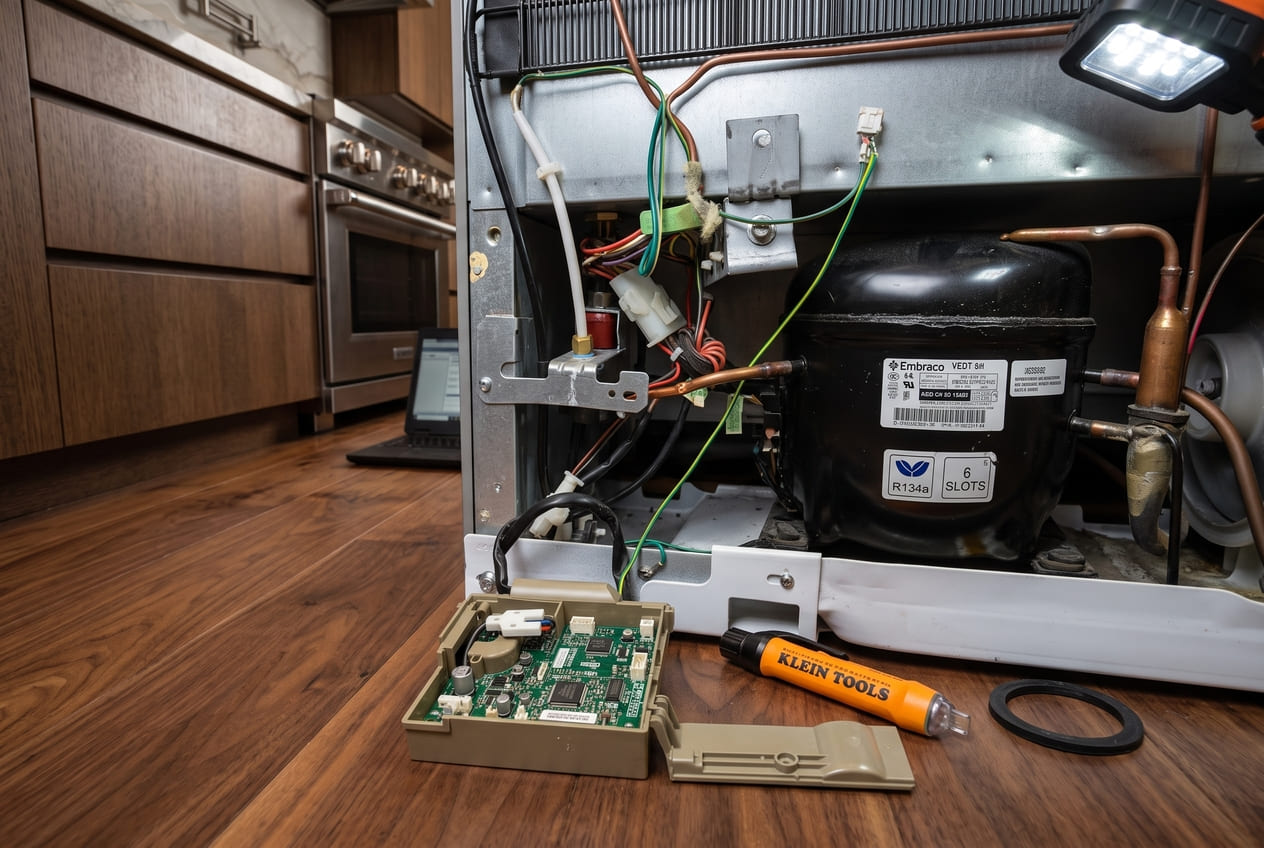

Shop checklist: what we check on a Bosch no-cool call
โ Incoming voltage to the refrigerator.
โ Board command for cooling.
โ Inverter input and output behavior.
โ Compressor winding resistance.
โ Ground fault check.
โ Compressor shell temperature.
โ Condenser fan operation.
โ Frost pattern or lack of frost.
โ Startup and running amperage.
โ Heat transfer across the condenser loop.
โ Temperature drop during operation.
โ Full model and FD verification before parts are ordered.
A weak compressor can fool people because it technically runs. You may hear it and even detect vibration. The cabinet still stays warm. We have seen refrigerators run almost nonstop while the fresh-food section sits in the mid-40s or higher and the freezer never pulls near range.
Itโs high time to test the cooling system.
When DIY Wonโt Help
Plenty of refrigerator fixes are reasonable for a capable homeowner. Shelves, bins, some gaskets, and a few accessible parts can be fair territory.
Compressor and sealed-system work sit in a different category.
Once refrigerant, inverter testing, compressor windings, brazing, vacuum, or exact charging enters the job, DIY stops being a bargain. One wrong part can waste hundreds. One poor sealed-system repair can ruin a new compressor. One missed inverter issue can make a compressor replacement look like it failed.
Hand the job off if:
โ Both compartments are warm while fans still run.
โ You suspect a compressor or inverter failure.
โ The compressor clicks, hums, overheats, or stays silent.
โ Refrigerant work may be involved.
โ You cannot confirm the cooling command electrically.
โ You are about to order expensive parts based on a guess.
โ The compressor not running issue keeps returning after resets.
โ The freezer and fresh-food section keep warming together.
A service call can be cheaper than experimenting. Bosch parts are not cheap, and a refrigerator running hard all day while barely cooling can burn time, food, and patience. Tight Atlanta cabinetry can add heat stress, but it does not change the repair order. The unit still needs proper testing before sealed-system parts are approved.
Bosch Compressor Replacement Cost: When $1,500 Makes Sense
Nobody likes hearing a four-figure refrigerator repair quote. But with Bosch compressor work, compressor replacement cost $1500 can be a realistic midpoint in Atlanta when the job covers the compressor, sealed-system labor, filter drier, refrigerant handling, brazing, vacuum, charging, testing, and a return visit if the part has to be ordered.
The better question is not whether $1,500 is high. The failure must be proven and whether your Bosch unit is worth repairing.
That answer depends on the model, age, cabinet condition, access, part availability, and whether the issue is truly the compressor or something around it.
Repair scenario | Typical Atlanta range | What changes the price |
|---|---|---|
Inverter board only | $450-$850 | Board price, model revision, access |
Compressor, drier, sealed-system labor | $1,200-$1,800 | Compressor cost, refrigerant procedure, labor time |
Compressor plus leak or restriction repair | $1,500-$2,200+ | Leak search, tubing repair, extra diagnostics |
Built-in Bosch sealed-system repair | Often higher | Cabinet access, pullout time, custom installation |
A $1,500 compressor repair can make sense on a premium Bosch built-in or counter-depth unit with a clean cabinet, strong door seals, and good parts availability. It makes less sense on an older refrigerator that already has failing electronics, damaged seals, noisy fans, rust, or other expensive problems waiting in line.
Repair usually makes sense when | Replacement is better when |
|---|---|
The refrigerator is roughly under 8-10 years old. | The refrigerator is older and already showing other failures. |
It is a premium Bosch built-in or counter-depth model. | Compressor, inverter, and sealed-system issues stack together. |
The cabinet, doors, shelves, and seals are still in good shape. | Parts are delayed with no clear ETA. |
The compressor or sealed-system failure has been confirmed. | The repair approaches half the price of a comparable replacement. |
Replacement would cost much more than repair. | Cabinet, door seals, or interior condition are already poor. |
Parts are available within a reasonable time frame. | The unit has a history of repeat cooling or electronics problems. |
Appliance Repair Master gives homeowners the straight version. Some Bosch refrigerators are worth saving. Some are not. We donโt push compressor work just because we can do it.
What Slows Down Bosch Compressor Repair in Atlanta
Same-day refrigerator service is realistic for many problems. Compressor repair is different.
Diagnosis may happen the same day. Full sealed-system repair depends on the exact model, part availability, refrigerant procedure, and whether the refrigerator has to be pulled from a tight cabinet opening.
The biggest delay is usually parts. Some Bosch inverter boards are easy to source. Some compressors and sealed-system parts are not. A technician may identify the failure on the first visit, but the actual repair can become a return-trip job if the compressor or board has to be ordered.
That is normal for this category.
Local factor | What it means for turnaround |
|---|---|
Part is in local stock | Repair may move faster |
Part ships from a regional warehouse | Adds several days |
Built-in refrigerator access | Longer appointment window |
Sealed-system job required | Usually not a quick in-and-out visit |
Metro route load | Affects same-day slot availability |
Model and FD check needed | Prevents wrong-part ordering |
Atlanta geography also matters. A sealed-system job in Decatur, a built-in Bosch in Alpharetta, and a diagnostic call in Marietta do not schedule like three simple appliance visits in the same ZIP code.
Good sealed-system work canโt be rushed to make the route look prettier. Brazing, vacuum, charging, and temperature verification need time.
What to expect on a compressor complaint
โ First visit for diagnosis.
โ Full model and FD check.
โ Compressor, inverter, and sealed-system testing.
โ Parts sourcing and availability check.
โ Repair quote and repair-versus-replacement discussion.
โ Return visit for sealed-system work if approved.
โ Temperature recovery check after the repair.
If the issue turns out to be an inverter, control, fan, or wiring problem and the part is available, the repair may move quickly. If it is compressor work, the first goal is a clean diagnosis so you do not wait on the wrong part.
What to Do Right Now if Your Bosch Refrigerator Is Warm
If your Bosch is warm today, protect the food first.
Use a thermometer if you have one. Check both compartments. Keep the doors closed as much as possible. Move high-risk food if the fresh-food section is above 40ยฐF. If the freezer climbs above 10ยฐF to 15ยฐF for an extended period, move frozen items before they soften further.
Donโt keep resetting the refrigerator every hour. Power-cycling can make the pattern harder to diagnose, and it wonโt fix a failed inverter, locked compressor, refrigerant leak, or sealed-system restriction.
Fast action checklist
โ Check the actual temperature with a thermometer.
โ Keep the doors closed.
โ Move perishable food if temperatures are unsafe.
โ Stop loading new groceries into the refrigerator.
โ Avoid repeated unplugging and resets.
โ Listen for clicking, humming, or silence near the compressor.
โ Note whether fans are running.
โ Call for diagnosis if both sections stay warm.
If both sections are warm and the fans still run, random part swapping no longer makes sense.
- Don’t start with the board because it is cheaper.
- Don’t start with the compressor because someone online said so.
That is how homeowners end up buying both.
Call right away if:
โ Both compartments are warming.
โ The light and display still work.
โ Fans run, but cooling does not return.
โ The compressor clicks, hums, overheats, or stays silent.
โ The compressor not running complaint returns after resets.
โ You need to know whether the compressor, inverter, or sealed system is the real failure.
If it is an inverter or control issue, we will tell you. If it is sealed-system work, we will price it clearly. If the refrigerator is not worth repairing, we will say that too.
Customer-Friendly Repair Path: What Happens After You Call
A compressor complaint can sound intimidating, especially when the refrigerator still has power. Here is the simple version of the steps after you book service with Appliance Repair Master.
โย Step 1: We confirm the symptom
We check whether one section is warm or both sections are losing temperature. That first detail shows us whether to start with airflow or move closer to compressor, inverter, and sealed-system testing.
โย Step 2: We rule out the basics
Power, display behavior, fans, airflow, condenser condition, door closure, cabinet installation, and temperature readings all help narrow the repair path.
โย Step 3: We test compressor and inverter behavior
If the refrigerator is calling for cooling, we check whether the compressor circuit receives and responds to that call. On inverter-driven Bosch models, compressor and inverter testing go together.
โย Step 4: We decide whether sealed-system diagnosis is needed
If electrical checks pass but cooling stays weak, the sealed system moves into the conversation. Refrigerant movement, restrictions, leaks, and compressor performance need to be verified.
โย Step 5: We explain repair versus replacement
A fan repair and a sealed-system repair are not the same decision. If your Bosch is worth saving, we explain why. If replacement makes more sense, we donโt dress it up as a repair opportunity.
โย Step 6: You choose the repair path
You get a clear explanation, a practical recommendation, and a real next step. No parts lottery. No mystery quote.
Bosch Compressor Failure Problems We Service in Atlanta
Appliance Repair Master services Bosch compressor and sealed-system complaints across Atlanta and nearby Georgia communities.
- Bosch compressor failure
- compressor not running
- Bosch refrigerator running but not cooling
- warm refrigerator and warm freezer
- weak cooling with fans running
- clicking or humming near compressor
- hot compressor shell
- Bosch inverter board compatibility concerns
- failed inverter board diagnosis
- B26FT70SNS compressor failure
- Bosch 800/500 Series compressor problems
- sealed system repair
- compressor replacement decisions
- refrigerant leak concerns
- restriction diagnosis
- repair-versus-replacement decisions
If your Bosch still powers on but doesnโt cool correctly, itโs high time to book service. The failure is active enough to test, and the repair may still be easier to plan before more food is lost.
Conclusion
Bosch refrigerator that isnโt cooling needs a careful diagnosis. Fan noise, a lit display, and a warm cabinet donโt prove the compressor is dead. They also donโt clear it. The problem may sit in the compressor, inverter board, control circuit, sealed system, refrigerant flow, or part compatibility.
That difference matters because Bosch compressor work can turn into a serious repair decision fast. If the quote is heading toward compressor replacement cost $1500, make sure the failure has been proven first. A bad inverter board, wrong replacement inverter, sealed-system restriction, or refrigerant leak can look like compressor failure from the kitchen.
Appliance Repair Master checks the full cooling path before recommending major parts: compressor behavior, inverter board compatibility, electrical command, sealed-system performance, temperature recovery, and model-specific fit. That is how we keep Atlanta homeowners from paying for the wrong repair.
If your Bosch refrigerator is warm in both sections, the fans still run, or you are dealing with a compressor not running complaint, book the diagnosis before ordering parts or approving sealed-system work.
FAQ
1. How do I know if my Bosch refrigerator compressor has failed?
A failed compressor often shows up as a refrigerator that has power, lights, and possibly fans, but does not cool properly in either section. The freezer warms, the fresh-food section warms, and the refrigerator may run for long stretches without pulling temperatures down. A bad inverter board or sealed-system issue can look similar, so the compressor should be tested before it is condemned.
2. Can Bosch refrigerator run with a bad compressor?
It may still power on, and fans or lights may work, but it will not cool correctly if the compressor isnโt doing its job. Homeowners often describe this as the refrigerator running but not cooling. The key is whether the compressor is actually starting, pumping refrigerant, and producing a temperature drop.
3. Why is my Bosch compressor not running?
Bosch compressor not running complaint can come from a failed compressor, bad inverter board, missing voltage, wiring issue, main control problem, thermal protection, or an inverter board compatibility problem after an incorrect replacement. The compressor and inverter should be tested together before either part is replaced.
4. Is Bosch compressor replacement a DIY job?
Not realistically for most homeowners. Compressor replacement is sealed-system work. It involves refrigerant handling, brazing, vacuum, charging to exact weight, pressure testing, and electrical diagnosis. This is not the same category as replacing a shelf, gasket, or simple visible part.
